Key Product Description :

Next-Generation RF: The TC-400-4310M-X 4.3/10 Male Connector

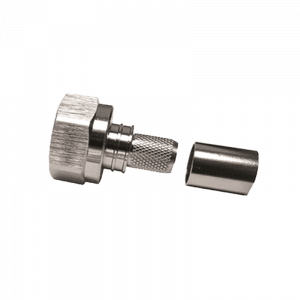

The Times Microwave TC-400-4310M-X is a premium, straight 4.3/10 mini DIN Male (Plug) connector designed to deliver stable, ultra-low Passive Intermodulation (PIM) performance for LMR-400 and compatible 400-series coaxial cables.³

The 4.3/10 interface is the modern solution for replacing the traditional 7/16 DIN in compact, high-density applications.⁴ It offers the same robust design and high power handling while featuring a significantly smaller and lighter footprint, making it perfect for today’s crowded antenna arrays and RRH (Remote Radio Head) systems.⁵

Key Features & Advantages :

• Superior Low PIM: Guarantees exceptional signal integrity in multi-carrier, high-power environments, essential for 4G/LTE and 5G networks.
• Compact 4.3/10 Interface: Provides a lightweight, space-saving alternative to 7/16 DIN without sacrificing electrical performance.
• High Frequency Performance: Rated up to 6 GHz with excellent VSWR, supporting current and future wireless standards.
• Secure Solder/Crimp Termination (TC Style): Combines a reliable solder inner contact for the center conductor (ideal for stranded wire) and a robust
• crimp outer contact for the braid, ensuring durability and weather resistance.
• Albaloy Finish: Features premium silver-plated contacts and a White Bronze/Albaloy plated body for maximum corrosion resistance and longevity in harsh outdoor deployments.
• LMR-400® Compatibility: Guaranteed perfect fit for LMR-400, TCOM-400, and other 400-series low-loss cables.

Technical Specifications at a Glance :
