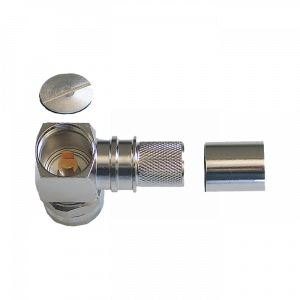

Key Features fo TC-600-NMH-RA-D
- Frequency Range: DC to 8 GHz
- Impedance: 50 Ohm
- VSWR: ≤1.3:1
- Center Pin: Solder
- Outer Contact: Crimp
- Material: Gold-plated brass
- RoHS/REACH Compliant
Compatible With
- LMR-600
- LMR-600-DB
- LMR-600-FR
- LMR-400-UF
Applications
- Compact antenna mounts
- Rack & enclosure wiring
- Cellular & Wi-Fi base stations
- Microwave & broadcast systems
- Military RF installations
Ready stock in UAE – order the TC-600-NMH-RA-D, N-Male Right Angle Connector for LMR-600 coaxial cable now for fast delivery.
| Part Number | TC-600-NMH-RA-D |
| Interface | N |
| Gender | Male |
| Orientation | Right Angle |
| PIM Rating | N/A |
| Stock Code | 3190-2427 |
| VSWR Freq | <1.35:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | Hex |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 1.8 |
| Length (mm) | 46.5 |
| Width (in) | 1.62 |
| Width (mm) | 41.2 |
| Weight (lb) | 0.185 |
| Weight (g) | 84.3 |
