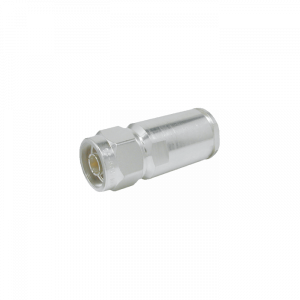

Key Features of TC-600-NMC
- Frequency Range: DC to 2.5 GHz
- Impedance: 50 Ohm
- VSWR: ≤1.25:1
- Center Pin: Solder
- Outer Contact: Clamp
- Finish: Nickel-plated brass, gold center
- RoHS/REACH Compliant
Compatible With
- LMR-600
- LMR-600-DB (direct bury)
- LMR-600-FR (flame retardant)
- LMR-400-UF (ultra-flexible)
Applications
- Cellular towers & base stations
- Wi-Fi & GPS antenna systems
- Broadcast & microwave feeds
- Military-grade RF installations
Ready stock in UAE – order the TC-600-NMC: N-Male Connector for LMR-600 coaxial cable today and ship within 24 hours.
| Part Number | TC-600-NMC |
| Interface | N |
| Gender | Male |
| Orientation | Straight Plug |
| PIM Rating | N/A |
| Stock Code | 3190-357 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 2.5 |
| Coupling Nut | Hex |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Clamp |
| Body Finish | Silver |
| Pin Finish | Gold |
| Length (in) | 2.1 |
| Length (mm) | 53 |
| Width (in) | 0.92 |
| Width (mm) | 23.4 |
| Weight (lb) | 0.208 |
| Weight (g) | 93.4 |
admin –
Heavy-duty N-Male connector for LMR-600. Features robust solder-pin and clamp-style outer contact, ensuring weatherproof, reliable 50-ohm performance for industrial and telecom use
