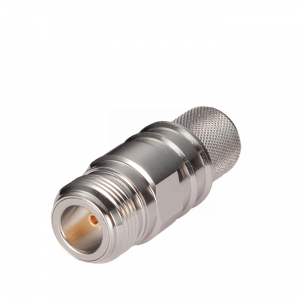

Key Features of TC-600-NF-X
- Frequency Range: DC to 8 GHz
- Impedance: 50 Ohm
- VSWR: ≤1.3:1
- Attachment: Solder center, crimp outer
- Body: Gold-plated brass
- Compliance: RoHS & REACH
Compatible With
- LMR-600
- LMR-600-DB (direct bury)
- LMR-600-FR (flame retardant)
- LMR-400-UF (ultra-flex)
Applications
- Cellular & Wi-Fi infrastructure
- Satellite & GPS antenna feeds
- Broadcast video distribution
- Defense & test lab RF systems
Ready stock in UAE – secure your TC-600-NF-X: N-Female Connector for LMR-600 coaxial cable now and ship today.
| Part Number | TC-600-NF-X |
| Interface | N |
| Gender | Female |
| Orientation | Straight Jack |
| PIM Rating | N/A |
| Stock Code | 3190-2816 |
| VSWR Freq | <1.30:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | N/A |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 1.7 |
| Length (mm) | 43 |
| Width (in) | 0.69 |
| Width (mm) | 17.6 |
| Weight (lb) | 0.076 |
| Weight (g) | 34.6 |
admin –
Heavy-duty N-Female connector for LMR-600. Features solder-pin/crimp termination, providing a robust, weatherproof connection and superior 6 GHz performance for demanding base station infrastructure
