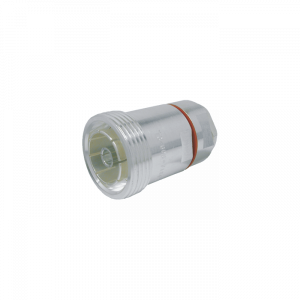

High-Performance RF Connectivity: TC-600-716FC 7/16 DIN-Female Connector for LMR-600 Coaxial Cable

In the demanding world of wireless communications, broadcast systems, and base station setups, nothing beats the reliability of a precision-engineered coaxial connector. The TC-600-716FC: 7/16 DIN-Female Connector for LMR-600 coaxial cable stands out as the go-to choice for professionals seeking low-loss, durable performance. Designed by Times Microwave Systems, this straight clamp-style connector ensures seamless integration with LMR-600 series cables, delivering exceptional signal integrity even in harsh outdoor environments.

Whether you’re optimizing antenna feeds, tower installations, or high-power transmission lines, the TC-600-716FC combines rugged construction with easy termination to minimize downtime and maximize efficiency. Explore how this connector can elevate your RF infrastructure today.

Key Features and Specifications

The TC-600-716FC is built for excellence, featuring:

• Interface and Design: 7/16 DIN female (jack), straight orientation with a secure clamp attachment for hassle-free installation on LMR-600 cables.
• Frequency Range: DC to 2.5 GHz, supporting a wide array of applications from low-band to high-frequency operations.
• Impedance: 50 Ohms, ensuring optimal power handling and minimal insertion loss.
• VSWR: <1.25:1 up to 2.5 GHz for superior signal reflection control and efficiency.
• Materials: Brass body with silver plating for corrosion resistance; beryllium copper contact with silver plating; PTFE dielectric for low-loss performance.
• Center Conductor Attachment: Solder type, compatible with both solid and stranded conductors.
• Dimensions and Weight: Compact profile at 1.1 inches (28 mm) length, 1.00 inch (25.4 mm) width, and just 0.249 lbs (112.9 g) for lightweight, easy handling.
• Durability: IP67-rated weatherproofing when paired with appropriate sealing boots, ideal for outdoor and marine use.

These specs make the TC-600-716FC a powerhouse for high-power RF systems, outperforming standard connectors in longevity and reliability.

Seamless Compatibility with LMR-600 Series Cables

One of the standout advantages of the TC-600-716FC: 7/16 DIN-Female Connector for LMR-600 coaxial cable is its versatile compatibility. It pairs perfectly with:

• LMR-600: Standard ultra-low-loss coaxial cable for general RF applications.
• LMR-600-DB: Direct-burial variant for underground installations.
• LMR-600-FR: Fire-retardant option for safety-critical environments.
• LMR-600-UF: Ultra-flexible design for dynamic routing in tight spaces.

This broad compatibility ensures the TC-600-716FC fits into existing LMR-600 setups without modifications, streamlining upgrades and expansions in telecom towers, broadcast antennas, and mobile networks.

Why Choose the TC-600-716FC for Your RF Projects?

Investing in the TC-600-716FC means choosing proven performance backed by Times Microwave’s decades of expertise. Its clamp design eliminates the need for specialized tools during termination, while the silver-plated components resist environmental degradation for years of trouble-free operation. In applications like 4G/5G base stations or microwave links, this connector reduces signal attenuation and enhances overall system uptime.

Compared to generic alternatives, the TC-600-716FC offers:

• Enhanced Mate/De-Mate Cycles: Gold-enhanced plating on contacts for reliable repeated connections.
• Torque-Ready Coupling: Hex nut design allows precise torquing for secure mating.
• Eco-Friendly Build: RoHS-compliant materials without compromising on strength.

Professionals trust it for its balance of affordability and premium quality – don’t settle for less in your next coaxial cable assembly.

Ready to Connect? Order Your TC-600-716FC Today

Elevate your RF performance with the TC-600-716FC: 7/16 DIN-Female Connector for LMR-600 coaxial cable. Contact us for bulk pricing, custom assemblies, or expert advice on integrating it into your LMR-600 projects. With fast shipping and full technical support, we’re here to power your success. Add to cart now and experience the difference in low-loss, high-reliability connectivity!
