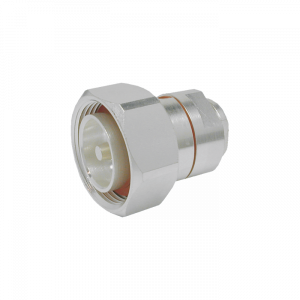

The Times Microwave TC-400-716-MC is the industry-standard 7/16 DIN Male Connector specifically engineered for use with LMR-400 and compatible low-loss coaxial cables (including LMR-400-DB, LMR-400-FR). This high-performance connector is essential for applications requiring exceptional signal integrity and environmental durability, particularly in cellular base stations, broadcast equipment, and critical RF infrastructure.
Key Features & Benefits:
- Low PIM Performance: Designed to minimize Passive Intermodulation (PIM), ensuring clean, reliable signal transmission critical for 4G/5G networks.
- Durable Clamp/Solder Attachment: Features a robust clamp for the outer contact and a solder connection for the center pin, providing superior mechanical strength and excellent RF shielding.
- Weatherproof Design: Engineered for harsh outdoor and indoor environments, offering reliable long-term performance and moisture protection.
- 50 Ohm Impedance: Perfectly matched for LMR-400 cable, guaranteeing minimal VSWR and maximum power transfer up to 2.5 GHz (or higher, consult datasheet).
- Genuine Times Microwave Quality: Trust the original manufacturer for a perfect fit and dependable connectivity.
Technical Specifications at a Glance:
| Feature | Detail | |
| Part Number | TC-400-716-MC | |
| Connector Type | 7/16 DIN Male (Plug) | |
| Cable Compatibility | LMR-400® | |
| Attachment Method | Clamp (Outer)/Solder (Inner) | |
| Impedance | 50 Ohm | |
| RF Performance | Low Passive Intermodulation (PIM) | |
| Body Material | Brass (Plated) |
