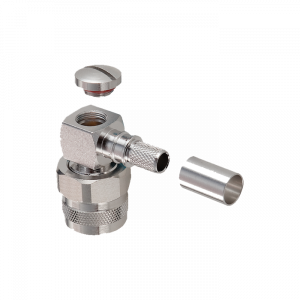

Key Features of the TC-240-TM-RA-D TNC-Male Right Angle Connector for LMR-240 Coaxial Cable

The TC-240-TM-RA-D TNC-Male Right Angle Connector for LMR-240 coaxial cable combines precision engineering with practical features for RF professionals:

• Solder-Type Center Contact: Ensures a strong, low-resistance connection to the cable’s center conductor, ideal for stranded centers and providing superior signal integrity.

• Crimp Outer Attachment: Fast crimp-style outer contact enables secure, efficient assembly, balancing reliability and installation ease.

• Right-Angle Design: Compact 90-degree configuration perfect for tight spaces and efficient cable routing in dense RF setups.

• High-Performance Specifications:

  • Frequency Range: DC to 6 GHz

  • Impedance: 50 Ohms

  • Body Finish: Nickel-plated with Albaloy/Tri-metal for exceptional corrosion resistance

  • Pin Finish: Gold-plated for low signal loss and high conductivity

  • VSWR: Low reflection for consistent signal quality

• Rugged Construction: Hex coupling nut for torque tool use; withstands vibration, moisture, and extreme temperatures with tri-metal plating.

The TC-240-TM-RA-D TNC-Male Right Angle Connector for LMR-240 coaxial cable is a dependable choice for high-frequency applications requiring compact and precise connections.
