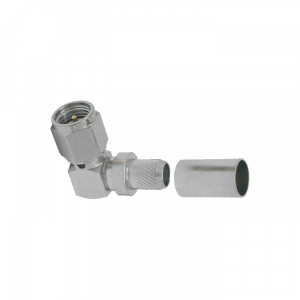

Key Features of the TC-240-SM-RA-X SMA-Male Right Angle Connector for LMR-240 Coaxial Cable

The TC-240-SM-RA-X SMA-Male Right Angle Connector for LMR-240 coaxial cable combines precision engineering with practical features for RF professionals:

• Solder-Type Center Contact: Ensures a strong, low-resistance connection to the cable’s center conductor, providing excellent signal integrity for high-frequency applications.

• Crimp Outer Attachment: Combines a solder pin with a crimp-style outer contact for secure, efficient assembly, balancing reliability and ease of installation.

• Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.

• High-Performance Specifications:

  • Frequency Range: DC to 6 GHz

  • Impedance: 50 Ohms

  • Body Finish: Nickel-plated for corrosion resistance

  • Pin Finish: Gold-plated for superior conductivity and low signal loss

  • VSWR: Low reflection for consistent signal quality

• Durable Construction: Threaded SMA coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.

The TC-240-SM-RA-X SMA-Male Right Angle Connector for LMR-240 coaxial cable is a reliable choice for high-frequency applications requiring compact and precise connections.
