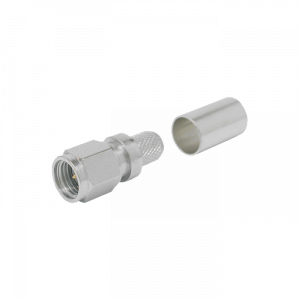

Key Features of the SMA-male Connector for LMR-195
- Crimp/Solder Attachment: Provides a secure and easy installation with crimp style for the shield and solder for the center pin, ensuring no braid trim is needed.
- Gold Plated Center Pin: Enhances conductivity and corrosion resistance for superior signal integrity in demanding environments.
- Passivated Stainless Steel Body: Offers rugged durability with weather-resistant properties, ideal for outdoor and harsh conditions.
- Frequency Range: Operates effectively up to 8 GHz, supporting high-frequency applications with low loss.
- 50 Ohm Impedance: Matches standard RF systems for optimal performance and minimal reflection.
- Compact Design: Measures approximately 1.17 inches in length, allowing for easy integration in space-constrained setups.
Compatibility and Integration
The SMA-male Connector for LMR-195 is fully compatible with LMR195-FR, LMR195-DB, LMR195-UF coaxial cables, enabling versatile use across fire-retardant, direct burial, and ultra-flex variants for extended reliability in various installations.
Upgrade your coaxial cable assemblies with the TC-195-SM-SS-X, delivering dependable performance for telecommunications, wireless networks, and other RF systems.
