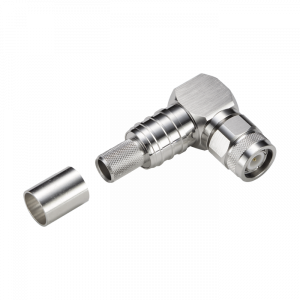

Key Features of the EZ-400-TM-RA-X, TNC-Male Right Angle Connector for LMR-400 Coaxial Cable
The EZ-400-TM-RA-X, TNC-Male Right Angle Connector for LMR-400 coaxial cable offers advanced features for RF professionals seeking efficiency and reliability:
Solderless EZ-Style Design: Utilizes spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss and high conductivity
VSWR: Low reflection for consistent signal quality
Durable Construction: Threaded TNC coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-400-TM-RA-X, TNC-Male Right Angle Connector for LMR-400 coaxial cable is a reliable choice for high-frequency applications requiring compact and precise connections.
admin –
Right-angle TNC for LMR-400. Solderless EZ-style provides quick, consistent terminations, even in tight spaces. Excellent VSWR up to 6GHz for reliable high-frequency performance. Highly durable.
