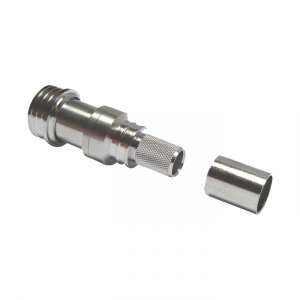

Key Features of the EZ-400-QNM-X, QN-Male Connector for LMR-400 Coaxial Cable
The EZ-400-QNM-X, QN-Male Connector for LMR-400 coaxial cable offers advanced features for RF professionals seeking efficiency and performance:
Solderless EZ-Style Design: Features spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
Quick-Connect QN Interface: Provides a push-on/pull-off mechanism for rapid mating, offering a time-saving alternative to traditional threaded connectors like N-type or TNC.
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss and high conductivity
VSWR: Low reflection for consistent signal quality
Durable Construction: Robust design with tri-metal plating to withstand vibration, moisture, and extreme temperatures, ensuring long-term reliability.
The EZ-400-QNM-X, QN-Male Connector for LMR-400 coaxial cable is a versatile solution for high-frequency RF applications requiring quick and reliable connections.
admin –
QN Male for LMR-400. Solderless EZ-style with spring-finger contact allows sub-30-second field termination. Features push-on/pull-off quick-connect interface and excellent VSWR up to 6GHz. Incredibly fast.
