Key Features for Performance & Installation Speed
- Designed for Plenum Cable: Specifically matched for the low-loss, fire-retardant LMR-400-LLPL and FBT-400 type cables.
- Solderless EZ-Style Termination: Eliminate assembly errors and save significant time in the field. The crimp-style outer contact and spring-finger inner contact mean no soldering is required.
- No-Braid Trim Advantage: A unique design feature that, when used with the appropriate prep tool, completely eliminates the need to trim the cable’s braid shield. This guarantees a consistent, optimal termination every time and reduces Foreign Object Debris (FOD).
- Superior RF Performance: Offers exceptional electrical performance up to 6 GHz with low VSWR (Voltage Standing Wave Ratio), ensuring minimal signal loss and maximum system efficiency for 50 Ohm applications.
- Gold-Plated Contacts: The Beryllium Copper (BeCu) spring-finger inner pin is gold-plated for maximum surface contact, superior conductivity, and excellent long-term reliability, even in high-vibration or extreme cold environments.
- Weatherproof & Durable: The robust Type N interface with a threaded coupling mechanism provides a secure, durable, and weather-resistant connection, essential for long-term reliability.

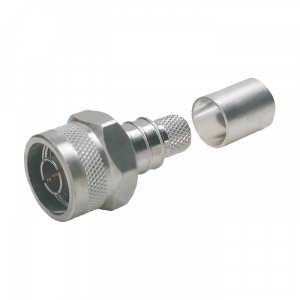

Why Choose the EZ-400-NMH-PL-X for Your Next Project?
In demanding in-building wireless and plenum space installations, time and reliability are paramount. The EZ-400-NMH-PL-X is part of the legendary EZ series, designed for quick and reliable field installation. Stop wasting time with difficult, error-prone connectors. Choose the EZ-400-NMH-PL-X for a guaranteed, high-performance connection on your LMR-400-LLPL plenum cable runs.
Description
| Part Number | EZ-400-NMH-PL-X |
| Interface | N |
| Gender | Male |
| Orientation | Straight Plug |
| PIM Rating | N/A |
| Stock Code | 3190-2961 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 2.5 |
| Coupling Nut | Hex/Knurl |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 1.5 |
| Length (mm) | 38 |
| Width (in) | 0.89 |
| Width (mm) | 22.6 |
| Weight (lb) | 0.113 |
| Weight (g) | 51.3 |









admin –
🛠️ EZ-400-NMH-PL-X Connector 🛠️: N Male for LMR-400-LLPL plenum cable. Solderless EZ-style provides fast, reliable field termination with no braid trim. Gold-plated spring-finger contact ensures superior 6GHz performance in extreme conditions.
