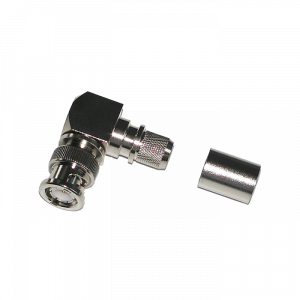

Key Features of the EZ-400-BM-RA-X, BNC-Male Right Angle Connector for LMR-400 Coaxial Cable
The EZ-400-BM-RA-X, BNC-Male Right Angle Connector for LMR-400 coaxial cable offers advanced features for RF professionals seeking efficiency and reliability:
Solderless EZ-Style Design: Features spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.
High-Performance Specifications:
Frequency Range: DC to 4 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss and high conductivity
VSWR: Low reflection for consistent signal quality
Durable Construction: Bayonet-style BNC coupling ensures quick, secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-400-BM-RA-X, BNC-Male Right Angle Connector for LMR-400 coaxial cable is a versatile solution for RF applications requiring compact and reliable connections.
admin –
📐 EZ-400-BM-RA-X Connector 📐: Right-angle BNC Male for LMR-400. Solderless EZ-style ensures quick, reliable field termination in tight spaces. Offers excellent 6GHz VSWR and a secure bayonet lock. Highly efficient.
