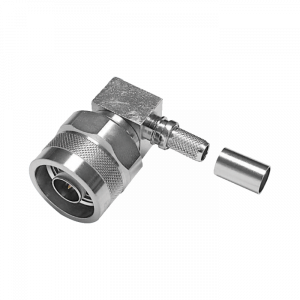

Key Features of the EZ-240-NMH-RA-X N-Male Right Angle Connector for LMR-240 Coaxial Cable
The EZ-240-NMH-RA-X N-Male Right Angle Connector for LMR-240 coaxial cable offers advanced features for RF professionals seeking efficiency and reliability:
Solderless EZ-Style Design: Utilizes spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
No Braid Trim Required: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for superior broadband VSWR performance.
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for enhanced conductivity and signal integrity
VSWR: Low reflection for consistent signal quality
Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.
Durable Construction: Threaded N-type coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-240-NMH-RA-X N-Male Right Angle Connector for LMR-240 coaxial cable is a versatile solution for high-frequency RF applications requiring precision and compact design.
admin –
Space-saving N-Male Right-Angle with EZ technology. Features solderless, captive pin and crimp shield for fast, high-performance, and weatherproof connections up to 6 GHz.
