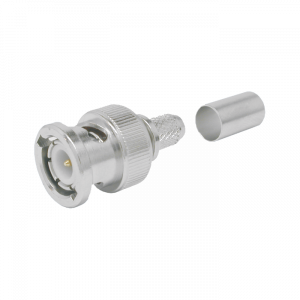

Key Features of the EZ-240-BM-X BNC-Male Connector for LMR-240 Coaxial Cable
The EZ-240-BM-X BNC-Male Connector for LMR-240 coaxial cable offers advanced features for RF professionals seeking efficiency and reliability:
Solderless EZ-Style Design: Features spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
No Braid Trim Required: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for superior broadband VSWR performance.
High-Performance Specifications:
Frequency Range: DC to 4 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for enhanced conductivity and signal integrity
VSWR: Low reflection for consistent signal quality
Durable Construction: Bayonet-style BNC coupling ensures quick, secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-240-BM-X BNC-Male Connector for LMR-240 coaxial cable is a versatile solution for RF applications requiring fast and reliable connections.
admin –
Solderless BNC Male for LMR-240. Features quick bayonet lock and captive pin technology for rapid, error-free crimp assembly, ensuring reliable 4 GHz performance for test equipment
