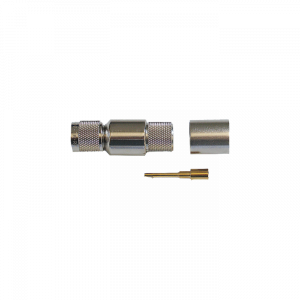

Key Features of the TC-600-TM-RP, TNC-Male Reverse Polarity Connector for LMR-600 Coaxial Cable
The TC-600-TM-RP, TNC-Male Reverse Polarity Connector for LMR-600 coaxial cable is built for compliance, power, and precision:
Reverse Polarity Design → Female center contact in male body — meets FCC Part 15 regulations
Solder-Type Center Contact → Permanent, high-current bond for maximum power transfer
Crimp Outer Attachment → Fast, secure assembly with standard crimp tools
High-Power Support → Handles up to 3 kW average power at lower frequencies
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss
VSWR: Ultra-low reflection for clean signal
Rugged Construction → Threaded RP-TNC coupling with tri-metal plating to resist vibration and thermal stress
The TC-600-TM-RP for LMR-600 coaxial cable is the only choice for compliant, high-power Wi-Fi and ISM systems.
Description
| Part Number | TC-600-TM-RP |
| Interface | TNC |
| Gender | Male |
| Orientation | Reverse Polarity |
| PIM Rating | N/A |
| Stock Code | 3190-1064 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | Knurl |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Nickel |
| Pin Finish | Gold |
| Length (in) | 2.1 |
| Length (mm) | 53.3 |
| Width (in) | 0.68 |
| Width (mm) | 17.3 |
| Weight (lb) | 0.112 |
| Weight (g) | 50.8 |
