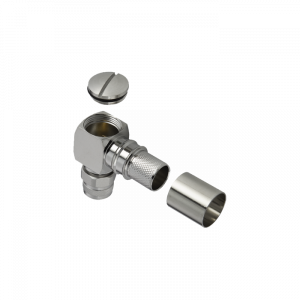

Key Features of the TC-600-TM-RA-D, TNC-Male Right Angle Soldering Connector for LMR-600 Coaxial Cable
The TC-600-TM-RA-D, TNC-Male Right Angle Soldering Connector for LMR-600 coaxial cable is built for high-density, high-power reliability:
Full Soldering Design → Center and outer conductor fully soldered for maximum current flow and thermal stability
Right-Angle Compact Form → 90° bend saves space in crowded racks and enclosures
High-Power Support → Handles up to 3 kW average power at lower frequencies
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss
VSWR: Ultra-low reflection for clean signal
Rugged Construction → Reinforced right-angle housing with tri-metal plating to resist vibration and thermal cycling
The TC-600-TM-RA-D TNC-Male Right Angle Soldering Connector for LMR-600 coaxial cable is the go-to solution for high-power RF in confined spaces.
Description
| Part Number | TC-600-TM-RA-D |
| Interface | TNC |
| Gender | Male |
| Orientation | Right Angle |
| PIM Rating | N/A |
| Stock Code | 3190-2707 |
| VSWR Freq | <1.35:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | Hex/Knurl |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 1.6 |
| Length (mm) | 41 |
| Width (in) | 1.75 |
| Width (mm) | 44.5 |
| Weight (lb) | 0.164 |
| Weight (g) | 74.3 |
