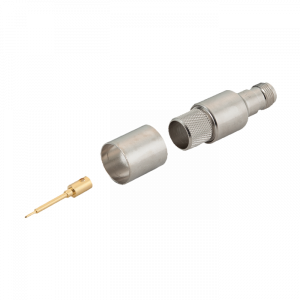

Key Features of the TC-600-TF-RP TNC-Female Reverse Polarity Connector for LMR-600 Coaxial Cable
The TC-600-TF-RP TNC-Female Reverse Polarity Connector for LMR-600 coaxial cable is engineered for compliance, power, and reliability:
Reverse Polarity Design → Male center pin in female body — meets FCC Part 15 regulations
Solder-Type Center Contact → Permanent, high-current bond for maximum power transfer
Crimp Outer Attachment → Fast, secure assembly with standard crimp tools
High-Power Support → Handles up to 3 kW average power at lower frequencies
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 50 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for low signal loss
VSWR: Ultra-low reflection for clean signal
Rugged Construction → Threaded RP-TNC coupling with tri-metal plating to resist vibration and thermal stress
The TC-600-TF-RP TNC-Female Reverse Polarity Connector for LMR-600 coaxial cable is the only choice for compliant, high-power Wi-Fi and ISM infrastructure.
Description
| Part Number | TC-600-TF-RP |
| Interface | TNC |
| Gender | Female |
| Orientation | Reverse Polarity |
| PIM Rating | N/A |
| Stock Code | 3190-1065 |
| VSWR Freq | <1.35:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | Knurl |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Nickel |
| Pin Finish | Gold |
| Length (in) | 2.2 |
| Length (mm) | 55.8 |
| Width (in) | 0.68 |
| Width (mm) | 17.3 |
| Weight (lb) | 0.1 |
| Weight (g) | 45.4 |
