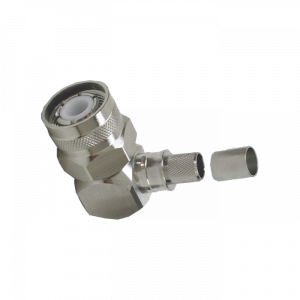

Key Features of the TC-400-HNM-RA, N-Male Right Angle Connector for LMR-400 Coaxial Cable

The TC-400-HNM-RA, N-Male Right Angle Connector for LMR-400 coaxial cable is built for high-power density and unmatched reliability:

• High-Power Solder/Crimp Design → Heavy-duty solder center + reinforced crimp outer for maximum current and thermal stability

• Right-Angle Compact Form → 90° design saves space, ideal for tight enclosures and high-density racks

• Enhanced Power Handling → Supports up to 2.5 kW average power at lower frequencies

• High-Performance Specifications:

  • Frequency Range: DC to 6 GHz

  • Impedance: 50 Ohms

  • Body Finish: Silver-plated for ultra-low PIM and high conductivity

  • Pin Finish: Gold-plated for corrosion resistance and signal purity

  • VSWR: Extremely low reflection for maximum efficiency

• Rugged Build → Reinforced right-angle housing with tri-metal plating to resist vibration, shock, and extreme temperatures

The TC-400-HNM-RA, N-Male Right Angle Connector for LMR-400 coaxial cable is the ultimate solution for high-power RF in compact spaces.
