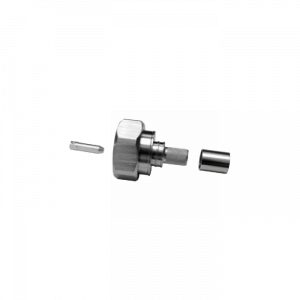

Key Features
- High Power Handling: Supports up to 2.5 kW at 1 GHz.
- Low PIM Design: Ideal for multi-carrier systems.
- Easy Crimp Installation: No soldering needed; uses standard tools.
- Weatherproof Seal: IP67-rated when properly assembled.
- Durable Construction: Silver-plated body and gold-plated center contact.
Specifications
| Parameter | Value |
|---|---|
| Connector Type | 7/16 DIN Male (Plug) |
| Attachment Method | Crimp (Non-Solder) |
| Impedance | 50 Ohms |
| Frequency Range | DC to 7.5 GHz |
| Body Material | Silver-Plated Brass |
| Center Contact | Gold-Plated Brass |
| Dielectric | PTFE |
| Mating Type | Threaded |
| Operating Temperature | -55°C to +85°C |
| VSWR | ≤1.25:1 (up to 2.7 GHz) |
| Insertion Loss | ≤0.1 dB |
| Power Rating | 2.5 kW @ 1 GHz |
| PIM Rating | ≤ -160 dBc (typical) |
Compatibility
The TC-400-716M-X: 7/16 DIN-Male Connector for LMR-400 coaxial cable works seamlessly with:
- LMR400
- LMR400-DB
- LMR400-FR
- TCOM-400
- LMR-400-UF
These cables provide low attenuation and flexibility for professional installations.
Applications
Use the TC-400-716M-X: 7/16 DIN-Male Connector for LMR-400 coaxial cable in:
- Cellular base stations (LTE, 5G)
- DAS (Distributed Antenna Systems)
- Broadcast transmission lines
- High-power RF test setups
- Microwave and radar systems
