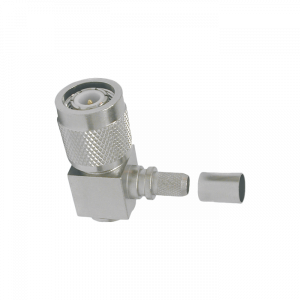

Key Features of the TC-240-TM-RA TNC-Male Right Angle Connector for LMR-240 Coaxial Cable

The TC-240-TM-RA TNC-Male Right Angle Connector for LMR-240 coaxial cable integrates precision engineering with user-friendly features for RF experts:

• Solder-Type Center Contact: Delivers a solid, low-resistance link to the cable’s center conductor, suited for stranded centers and ensuring top signal integrity.

• Crimp Outer Attachment: Pairs a solder pin with a crimp-style outer contact for safe, effective assembly, merging reliability with installation simplicity.

• Right-Angle Design: Space-saving 90-degree setup perfect for narrow areas and streamlined cable management in packed RF configurations.

• High-Performance Specifications:

  • Frequency Range: DC to 6 GHz

  • Impedance: 50 Ohms

  • Body Finish: Nickel-plated for corrosion resistance

  • Pin Finish: Gold-plated for superior conductivity and minimal signal loss

  • VSWR: Low reflection for steady signal quality

• Durable Construction: Threaded TNC coupling offers secure attachment, with tri-metal plating to endure vibration, moisture, and severe temperatures.

The TC-240-TM-RA TNC-Male Right Angle Connector for LMR-240 coaxial cable is a trustworthy option for high-frequency uses needing compact, accurate connections.
