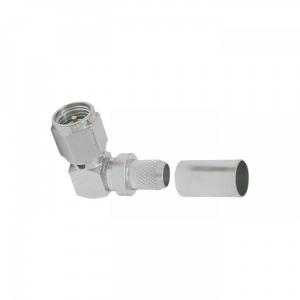

Key Features of the TC-240-SM-RA SMA-Male Right Angle Connector for LMR-240 Coaxial Cable
The TC-240-SM-RA, SMA-Male Right Angle Connector for LMR-240 coaxial cable combines precision engineering with practical features for RF professionals:
- Solder-Type Center Contact: Ensures a strong, low-resistance connection to the cable’s center conductor, providing superior signal integrity for high-frequency applications.
- Crimp Outer Attachment: Combines a solder pin with a crimp-style outer contact for secure, efficient assembly, balancing reliability and ease of installation.
- Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.
- High-Performance Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Body Finish: Nickel-plated for corrosion resistance
- Pin Finish: Gold-plated for low signal loss and high conductivity
- VSWR: Low reflection for consistent signal quality
- Durable Construction: Threaded SMA coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The TC-240-SM-RA ,SMA-Male Right Angle Connector for LMR-240 coaxial cable is a dependable choice for high-frequency applications requiring compact and precise connections.
admin –
Space-efficient, right-angle SMA connector for LMR-240. Features durable stainless steel and solder-pin termination, providing rock-solid 6 GHz performance in constrained spaces.
