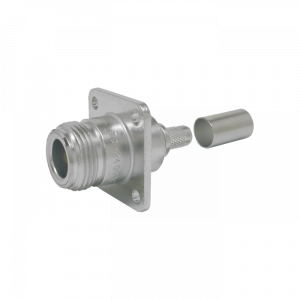

Key Advantages of the TC-240-NF-PM-X Design
The N-Type Female Panel Mount design separates this model from standard inline connectors, offering superior mechanical stability and environmental sealing.
- Panel Mount Flange: Designed with a square flange and mounting holes for rock-solid mechanical attachment to any enclosure, ensuring the connection point remains secure against vibration and stress.
- Solder/Crimp Termination: The connector utilizes a reliable solder-pin center contact and a crimp outer contact, maximizing conductivity while maintaining a secure grip on the LMR-240 cable jacket.
- High-Performance RF: Rated for operation up to 6 GHz, this connector delivers exceptional VSWR performance necessary for modern high-speed wireless and telecom systems.
- Robust Construction: The brass body with an Alballoy finish provides excellent resistance to corrosion and environmental degradation, extending the lifespan of your permanent installations.
Compatibility and Installation
The TC-240-NF-PM-X is an essential component for any LMR-240 cable assembly requiring a fixed external connection point.
Compatible Coaxial Cables
The TC-240-NF-PM-X N-Type Female Panel Mount connector for LMR-240 is fully compatible with the following cables:
- LMR-240 (Standard)
- LMR-240-FR (Fire Retardant)
- LMR-240-DB (Direct Burial/Watertight)
Description
| Part Number | TC-240-NF-PM-X |
| Interface | N |
| Gender | Female |
| Orientation | Panel Mount |
| PIM Rating | N/A |
| Stock Code | 3190-2889 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 6 |
| Coupling Nut | N/A |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 1.7 |
| Length (mm) | 44 |
| Width (in) | 0.88 |
| Width (mm) | 22.2 |
| Weight (lb) | 0.115 |
| Weight (g) | 52.2 |
admin –
Rugged N Female Panel Mount connector for LMR-240. Flange mounting and solder-crimp termination provide durable, weatherproof, 6 GHz performance ideal for infrastructure and antennas.
