Key Features of the EZ-600-TF-RP Connector
- Quick Crimp-No-Solder Assembly: Install effortlessly with standard tools for secure, gas-tight terminations.
- High-Grade Materials: Nickel-plated body and gold-plated contacts for exceptional corrosion resistance and conductivity.
- Superior Frequency Handling: Operates up to 6 GHz with VSWR <1.30:1 and reduced insertion loss.
- Rugged Weatherproof Build: Perfect for indoor/outdoor deployments in routers, bridges, and compliant RF systems.

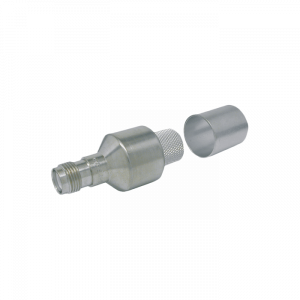

The EZ-600-TF-RP, TNC-Female Reverse Polarity Connector for LMR-600 coaxial cable delivers regulatory compliance and top-tier durability for modern wireless setups.
Compatible With Reliable LMR-600 Variants
This connector ensures optimal fit and performance, being fully Compatible With: LMR-600, LMR-600-DB, and LMR-600-FR. Whether using standard LMR-600 for flexible routing, the direct-bury LMR-600-DB for harsh terrains, or the low-smoke LMR-600-FR for fire-regulated spaces, the EZ-600-TF-RP provides consistent 50-ohm impedance and shielding.
Why Choose the EZ-600-TF-RP for Compliant RF Connections?
Opt for the EZ-600-TF-RP, TNC-Female Reverse Polarity Connector for LMR-600 coaxial cable to meet FCC Part 15 requirements while enjoying vibration-resistant threading. It’s 0.600″ hex crimp design accelerates fieldwork, maintaining excellent PIM levels for clear data transmission. Available now at a lower price in the UAE – upgrade your coaxial network seamlessly!
| Part Number | EZ-600-TF-RP |
| Interface | TNC |
| Gender | Female |
| Orientation | Reverse Polarity |
| PIM Rating | N/A |
| Stock Code | 3190-797 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 2.5 |
| Coupling Nut | N/A |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (in) | 2.3 |
| Length (mm) | 58 |
| Width (in) | 0.87 |
| Width (mm) | 22 |
| Weight (lb) | 0.1 |
| Weight (g) | 45.4 |
