Key Features for Telecom and Broadcast Professionals

• Right-Angle Design (RA): The90orientation is perfect for tight-space installations, allowing the LMR-400 cable to route immediately along a surface, minimizing bend radius and cable stress.

• 7/16 DIN Male Interface: Known for its excellent PIM performance and robust, threaded coupling, the7/16DIN is the standard choice for high-power, water-resistant applications like cellular base stations and broadcast communication systems.

• Solderless EZ-Style Termination: This patented design guarantees a quick, error-free field termination. The crimp-style outer contact and gold-plated spring-finger inner contact eliminate the need for soldering, drastically reducing installation time.

• No-Braid Trim Advantage: When used with the recommended prep tool, the EZ-style connection requires no trimming of the cable’s braid shield.This feature eliminates FOD (Foreign Object Debris) and ensures a consistent, high-quality electrical connection every time.

• Superior RF Specifications: Provides outstanding VSWR (Voltage Standing Wave Ratio) up to 6GHz (with some models rated up to 4GHz for PIM-critical applications), ensuring minimal signal loss and maximum efficiency for your 50Ohms systems.
• Extreme Durability: Built with a rugged Alballoy body finish and designed with a strong spring force on the center pin, the connector is a perfect choice for environments with high vibration or extreme temperature variations.

Optimize Your Base Station & Cabinet Connectivity

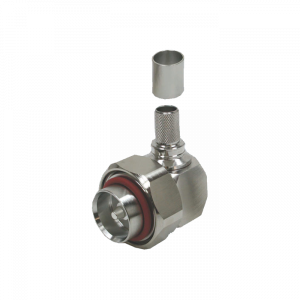

For network operators and installers seeking an RF connector that delivers uncompromised performance and mechanical flexibility, the EZ-400-716M-RA-X is the ultimate solution. Achieve a reliable, weatherproof, and perfectly angled connection on your LMR-400 cable runs quickly and easily.

Upgrade your tight-space RF connections today with the EZ-400-716M-RA-X.
