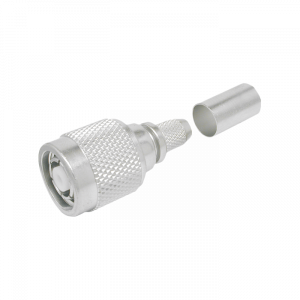

Key Features of the EZ-240-TM-RP RP-TNC Male Reverse Polarity Connector for LMR-240

The EZ-240-TM-RP RP-TNC Male Reverse Polarity Connector for LMR-240 combines innovative design with robust functionality, making it a top choice for RF professionals:

• Solderless EZ-Style Technology: Utilizes spring finger inner contacts that securely grip the cable’s center conductor, eliminating the need for soldering and enabling quick, low-resistance connections—ideal for field use.

• Crimp Outer Attachment: Fast crimp-style outer contact allows secure assembly in under 30 seconds, reducing installation time and minimizing errors.

• No Braid Trim Needed: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for excellent broadband VSWR performance.

• High-Performance Specifications:

  • Frequency Range: DC to 6 GHz

  • Impedance: 50 Ohms

  • Body Finish: Nickel-plated for corrosion resistance

  • Pin Finish: Gold-plated for superior conductivity and signal integrity

  • VSWR: Low reflection for consistent signal quality

• Reverse Polarity Design: Features a female center contact in a male body, ensuring compatibility with RP-TNC female connectors for specialized RF systems.

• Durable Construction: Threaded TNC coupling provides secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.

The EZ-240-TM-RP RP-TNC Male Reverse Polarity Connector for LMR-240 is an ideal solution for high-frequency applications requiring reliable and efficient connections.
