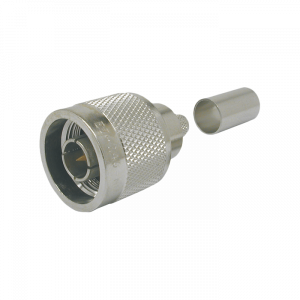

Key Features of the EZ-240-NM-75 75 Ohms N-Male Connector for LMR-240-75 Coaxial Cable
The EZ-240-NM-75 75 Ohms N-Male Connector for LMR-240-75 coaxial cable offers advanced features for RF professionals seeking efficiency and performance:
Solderless EZ-Style Design: Utilizes spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
No Braid Trim Required: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for superior broadband VSWR performance.
High-Performance Specifications:
Frequency Range: DC to 6 GHz
Impedance: 75 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for enhanced conductivity and signal integrity
VSWR: Low reflection for consistent signal quality
Durable Construction: Threaded N-type coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-240-NM-75 75 Ohms N-Male Connector for LMR-240-75 coaxial cable is a reliable choice for 75-ohm RF applications requiring precision and robustness.
admin –
Solderless 75-Ohm N-Male for LMR-240-75. EZ-style crimp and captive pin ensure quick, clean termination, offering highly-matched performance up to 2.5 GHz for video use.
