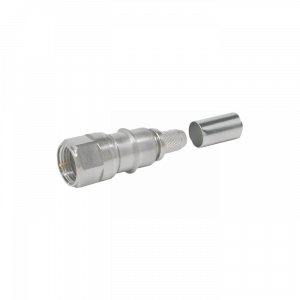

Key Features of the EZ-240-FMH-75, 75 Ohms F-Male Connector for LMR-240-75
The EZ-240-FMH-75, 75 Ohms F-Male Connector for LMR-240-75 offers advanced features for RF professionals seeking efficiency and reliability:
Solderless EZ-Style Design: Utilizes spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.
Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.
No Braid Trim Required: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for superior broadband VSWR performance.
High-Performance Specifications:
Frequency Range: DC to 3 GHz
Impedance: 75 Ohms
Body Finish: Nickel-plated for corrosion resistance
Pin Finish: Gold-plated for enhanced conductivity and signal integrity
VSWR: Low reflection for consistent signal quality
Durable Construction: Threaded F-type coupling ensures secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.
The EZ-240-FMH-75, 75 Ohms F-Male Connector for LMR-240-75 is a versatile solution for 75-ohm RF applications requiring precision and ease.
admin –
Solderless F-Male for 75-Ohm LMR-240-75. EZ-style captive pin and crimp design ensure quick field termination, providing solid 75-ohm impedance matching for video/CATV use.
