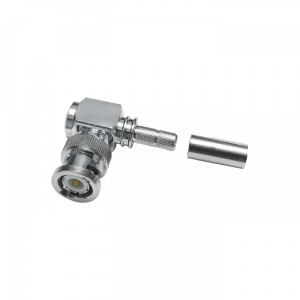

Key Features of the EZ-240-BM-RA-X BNC-Male Right Angle Connector for LMR-240 Coaxial Cable

The EZ-240-BM-RA-X BNC-Male Right Angle Connector for LMR-240 coaxial cable offers advanced features for RF professionals seeking efficiency and reliability:

• Solderless EZ-Style Design: Features spring finger inner contacts that securely grip the cable’s center conductor, eliminating soldering for fast, low-resistance connections—perfect for field installations.

• Crimp Outer Attachment: Quick crimp-style outer contact enables secure assembly in under 30 seconds, minimizing installation time and errors.

• No Braid Trim Required: Eliminates braid trimming to reduce foreign object debris (FOD) risks and maintain optimal cable geometry for superior broadband VSWR performance.

• High-Performance Specifications:

  • Frequency Range: DC to 4 GHz

  • Impedance: 50 Ohms

  • Body Finish: Nickel-plated for corrosion resistance

  • Pin Finish: Gold-plated for enhanced conductivity and signal integrity

  • VSWR: Low reflection for consistent signal quality

• Right-Angle Design: Compact 90-degree configuration ideal for tight spaces and efficient cable routing in dense RF setups.

• Durable Construction: Bayonet-style BNC coupling ensures quick, secure mating, with tri-metal plating to withstand vibration, moisture, and extreme temperatures.

The EZ-240-BM-RA-X BNC-Male Right Angle Connector for LMR-240 coaxial cable is a versatile solution for RF applications requiring compact and reliable connections.
